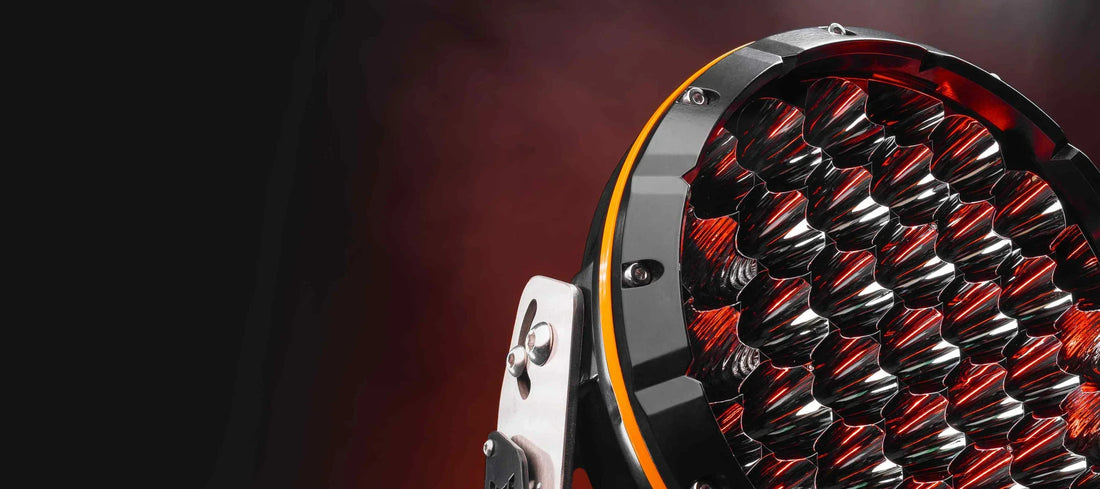

STEDI Type X™ Sport LED Driving Lights

STEDI Type X™ Sport LED Driving Lights

ABOUT THE STEDI TYPE X SPORT

We welcome the all-new Type-X Sport – Our most affordable driving light yet. Our very existence as a brand is to offer high-performance, high-quality driving lights at accessible prices. Compare build quality, performance, and list of inclusion with other offerings on the market and you will conclude that our Type-X Sport is peerless. (Registered Design Number 201914860 & Registered Trademark).

Three years since the inception of original Type-X, we’ve taken an already proven platform and completely redesigned it from the ground up. All-new reflector geometry, all-new LEDs, and all-new housing. We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.

WHATS IN THE BOX

2 x STEDI TYPE-X Sport
2 x STEDI Black Out Covers
1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors
H4 + HB3 Adapter plugs to high beam
60A Relay, Fuse, Switch
3 Series Stainless Steel Nuts and Bolts
Rubber Shock Dampener
Wiring Instructions



KEY SPECIFICATIONS

LED: 36 x Osram Oslon SSL
Raw Lumens: 20,780 (Pair)
Tested Lumens: 14,950 (Pair)
Amp Draw: 9.8A @ 13.2v (each)
Power Draw: 129W
Candela: 1,102,500cd
Beam Pattern: 4 x spread, 32 x Spot Beam
Ingress Protection: IP68 | Submersible up to 3m
Colour Temp (CCT): 5700K
Voltage Compatibility: 12v & 24v
Lumen Maintenance: 50,000 LM-80
Weight: 3.35kg (each)

Photometric Data:

  • 10 M | 11,025Lx
  • 50 M | 441Lx
  • 200 M | 27Lx
  • 300 M | 12Lx
  • 400 M | 6Lx
  • 1,000 M | 1.1Lx
  • 1,050 M | 1Lx



EXPLODED DIAGRAM

The installation of the Type X Sport follows very similar to the rest of the range of Type X Lights, very simple and best explained using the below exploded diagram. Most will find it easier to set up the bracket first and once fitted, install the lights.
