STEDI

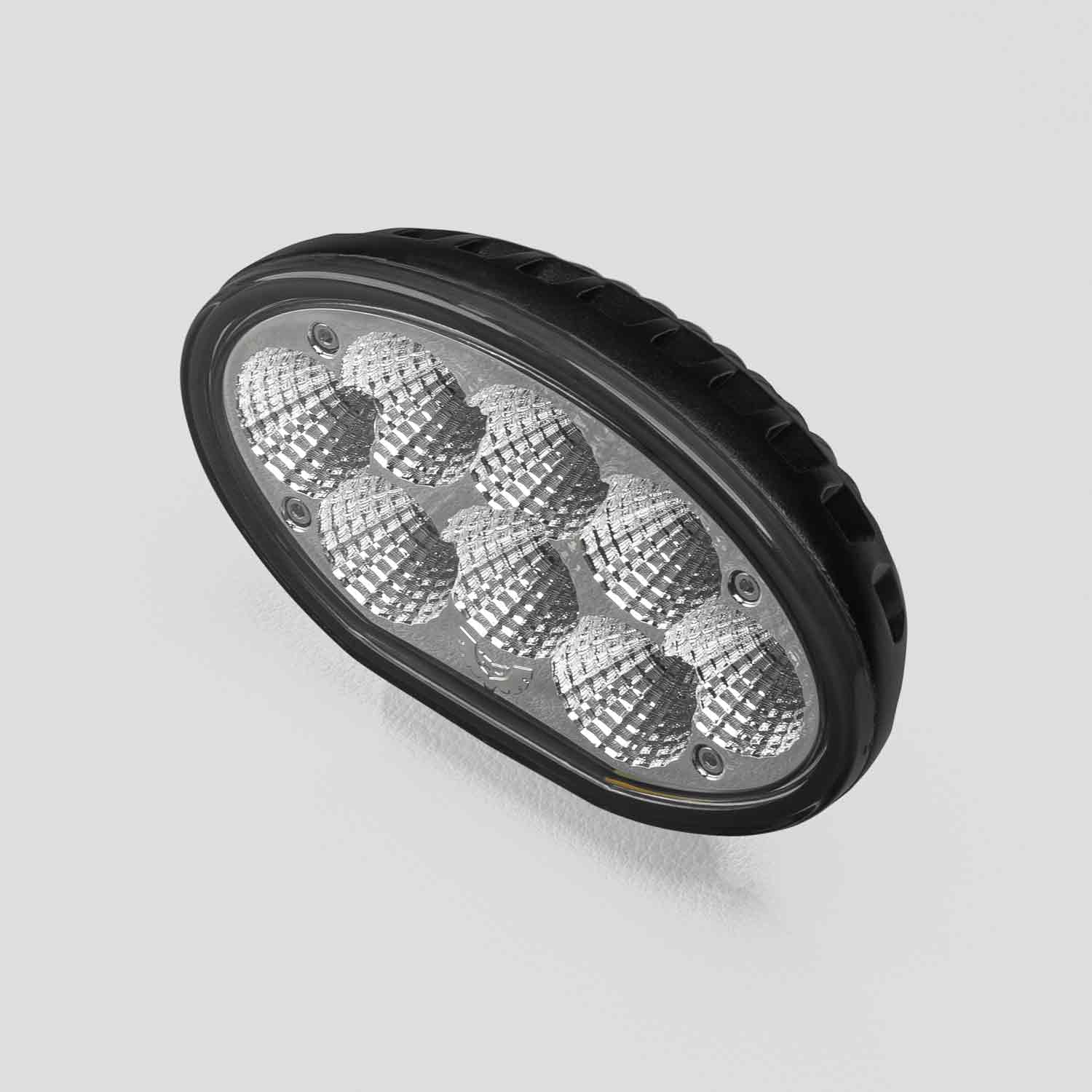

STEDI 24 Watt LED Tractor Flood Light

STEDI 24 Watt LED Tractor Flood Light

Regular price $89.00 NZD
Regular price Sale price $89.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

The nitty
gritty.

We welcome the new 2021 V2 variant of our popular 24W LED Tractor Light.

  • 8 x 3W Osram P7 LEDs
  • CISPR 25 Class 3 RFI Suppressed - We guarantee no interference with radio and communication equipment

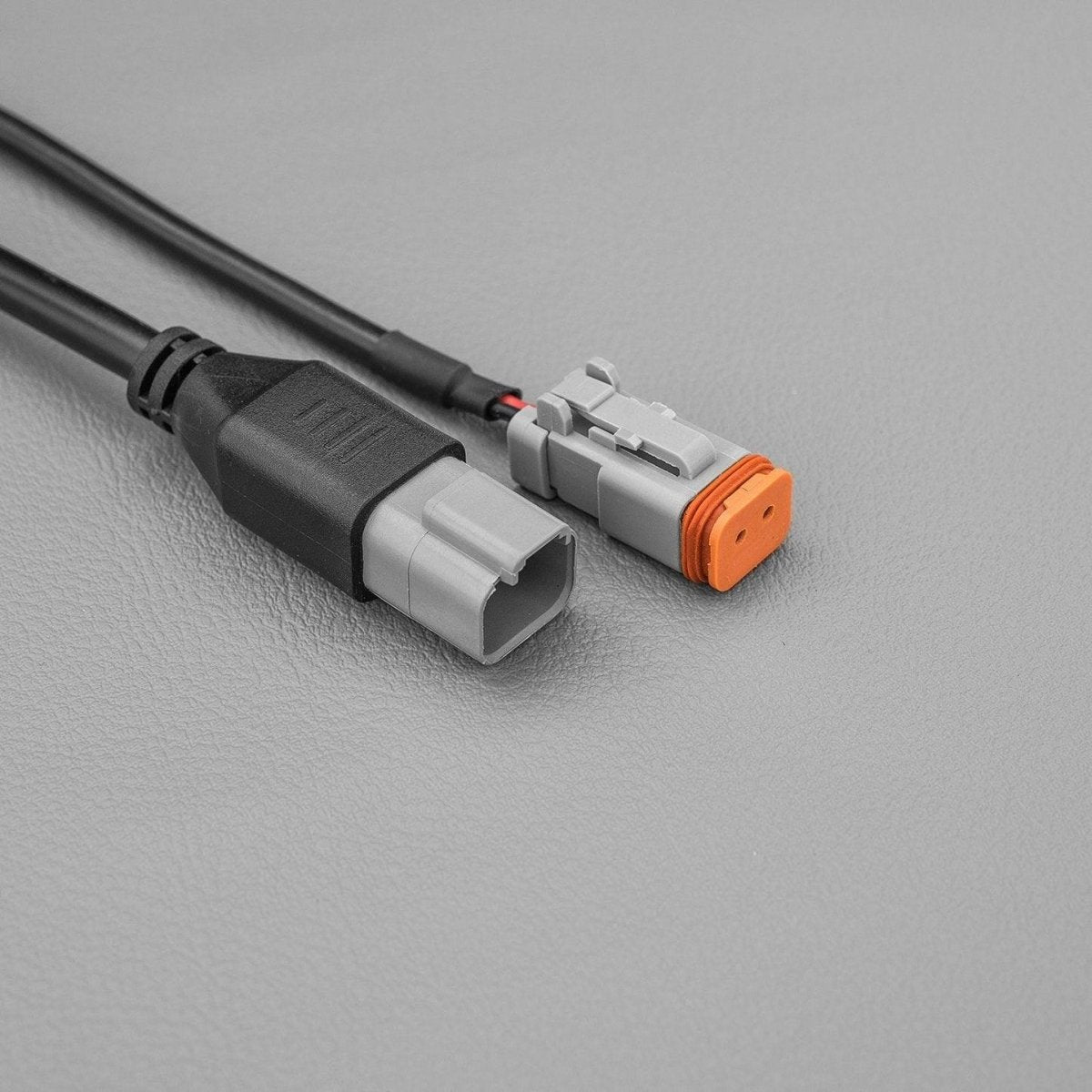

  • Deutsch DT-2 Environmentally sealed

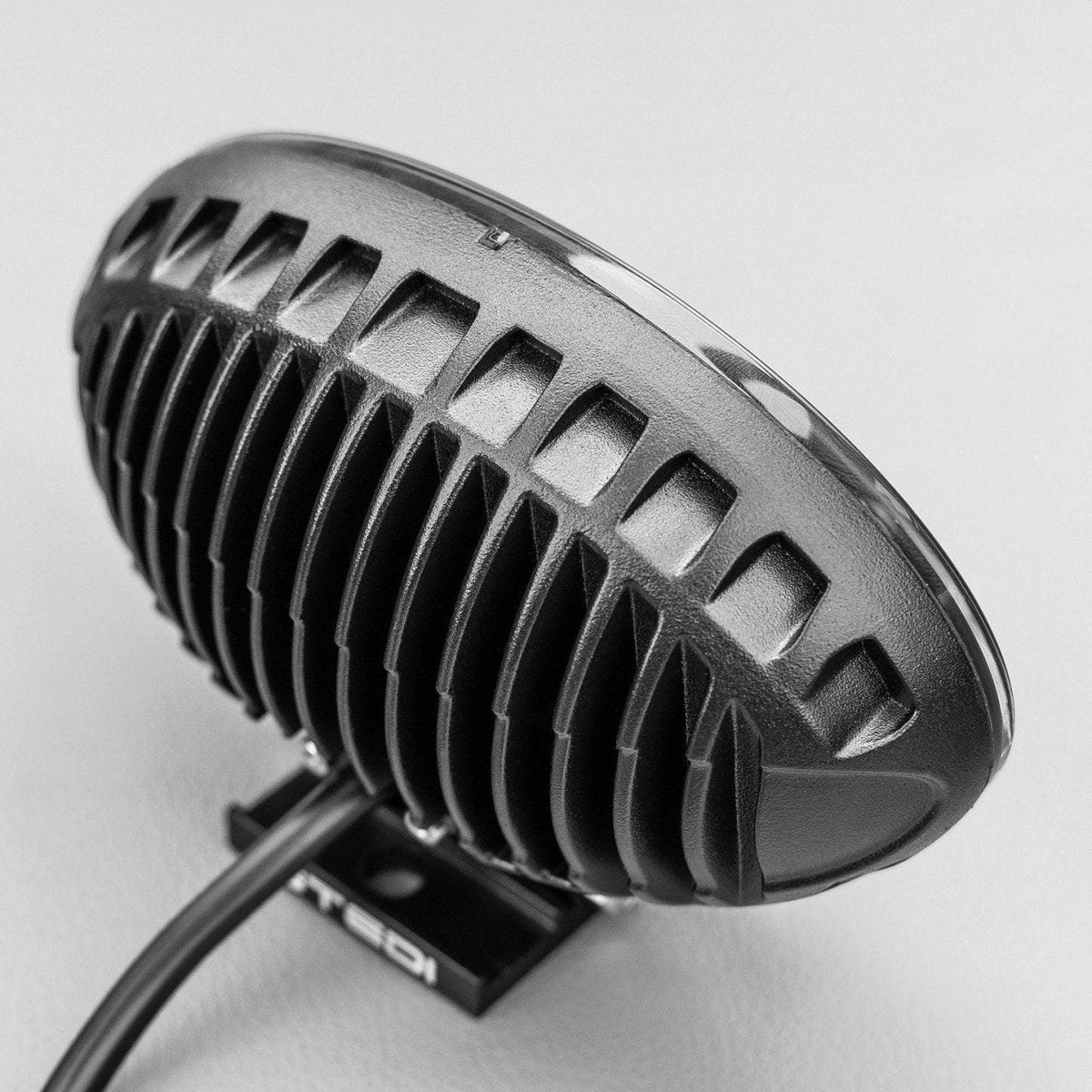

  • 6063 Die-cast aluminium housing

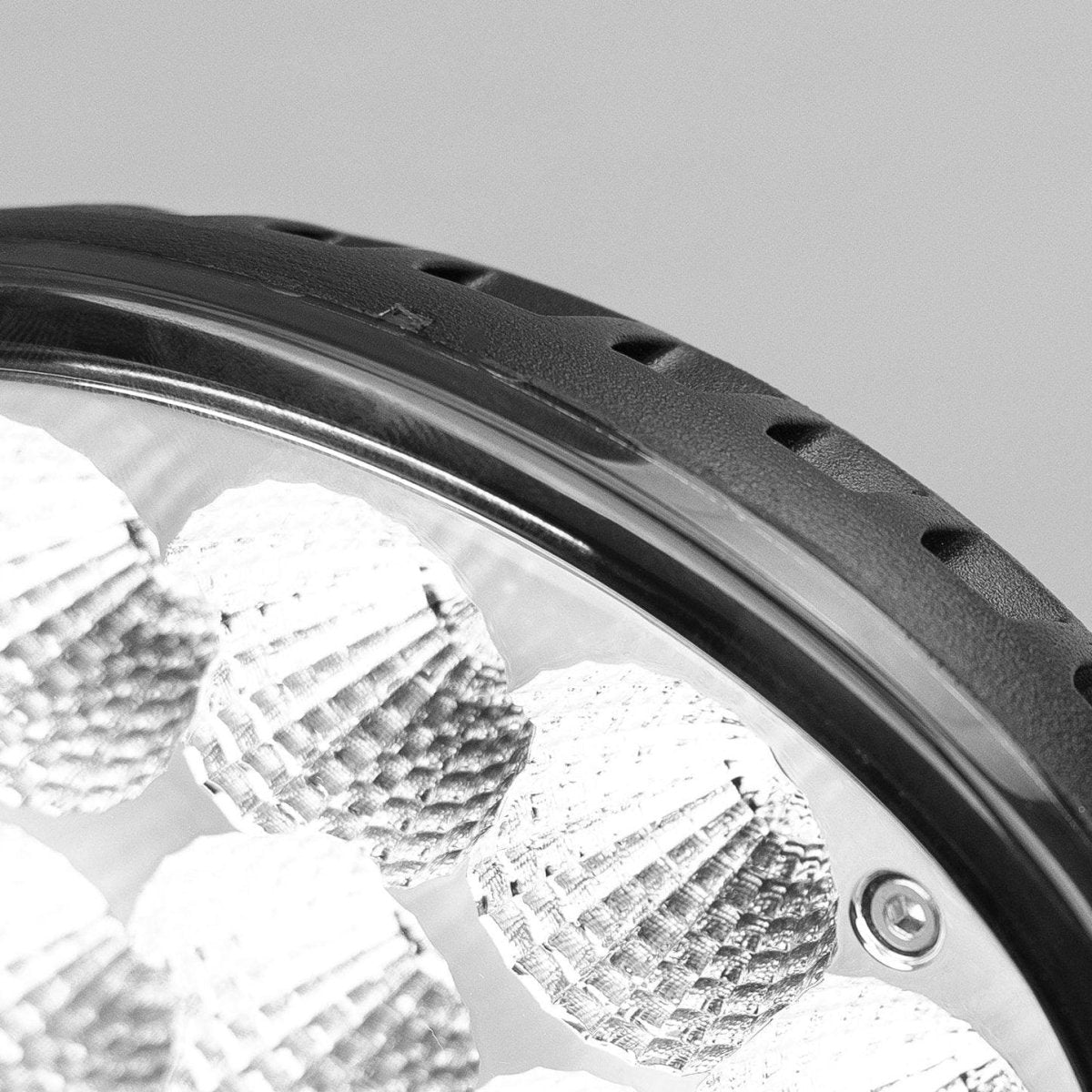

  • Virtually indestructible UV stabilised polycarbonate lens
  • 5700K True White Coordinated Colour Temperature

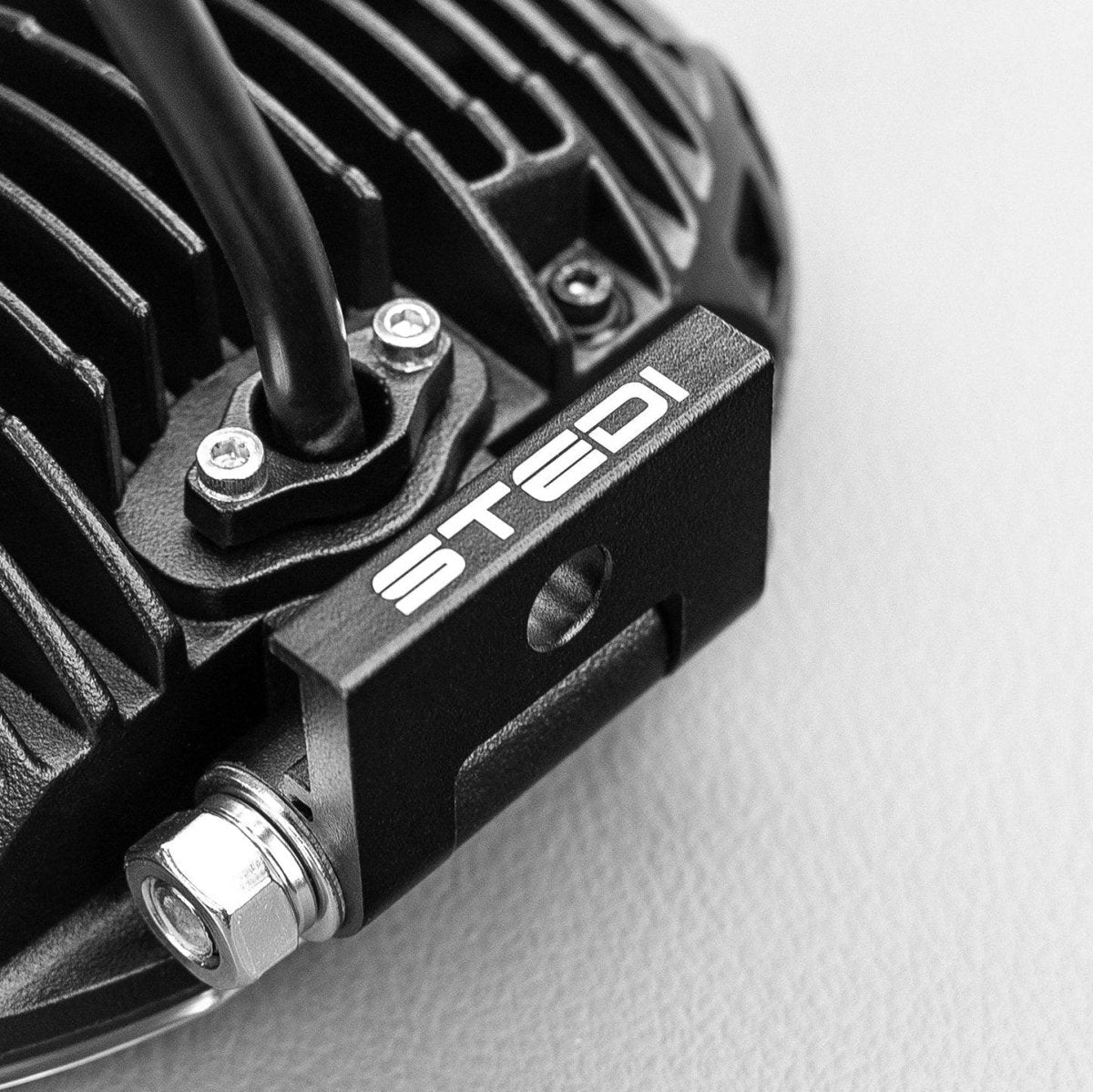

  • Die-Cast bracket (not folded steel like other offerings)

Compared to the OE John Deere LED offering, these are twice as bright.

Direct replacement for;

  • Case IH Combine(s) 5088, 5130, 5140, 6088, 6140, 7010, 7088, 7120, 7130, 7140, 7230, 8010, 8120, 8230, 8240, 9120, 9230
  • Replaces Case IH OEM# 87001315, 87284332, 47682620, 87584890, 84479126
  • John Deere Combine S550, S650, S660, S670, S670HM, S680, S680HM, S690, S690HM, S760, S770, S780, S790, T550, T560, T660, T670, W540, W550, W650, W660, 9560, 9560 SH, 9560 STS, 9570 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9760 STS, 9770 STS, 9870 STS
  • Replaces John Deere OEM# AH207788, AH205072, AXE16947, AXE40244



Tech Specs

POWER 24 Watts
LEDs 8 x 3 Watt Osram P7 LEDs
CURRENT DRAW 2A @ 12V
HOUSING MATERIAL Die-Cast Aluminium
LUMENS 2600lm
INGRESS PROTECTION IP68
COLOUR TEMPERATURE 5700K
LUMEN MAINTENANCE 30,000hrs (LM-80)
LENS Polycarbonate
WEIGHT 0.42kgs
BEAM TYPE Flood
APPROVED CE, ROHS, E-Mark R10
OPERATING TEMP -40°C - 60°C
COMPATIBLE INPUT VOLTS 10 - 30V DC

⚠️ Important Information: You are responsible for the LVV compliance of products purchased and installed, if applicable. Images are for illustration purposes only, actual products may vary. Please contact us if you have any questions
