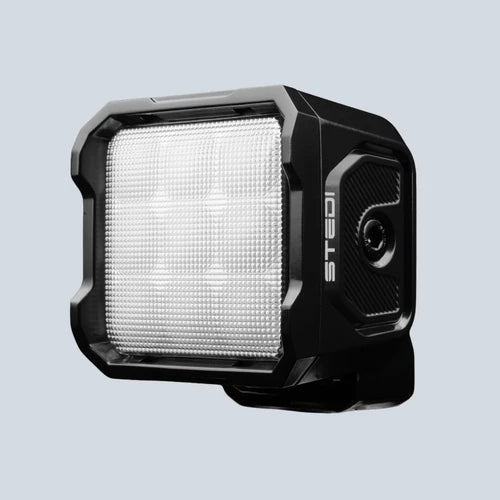

STEDI G9 Black Ultra Flood Work Light
STEDI G9 Black Ultra Flood Work Light
Couldn't load pickup availability

A New Dimension In Power.
The STEDI™ G9 — Ultra Flood is a multipurpose auxiliary light suitable for a range of heavy duty applications. The G6 — Ultra Flood delivers our widest, ultra-diffused light pattern of 80 degrees — optimised to distribute light both laterally and vertically. Built to last, the STEDI™ G Series achieves the highest IP69K rating and CISPR 25 C3 certification.

Blinding Performance.

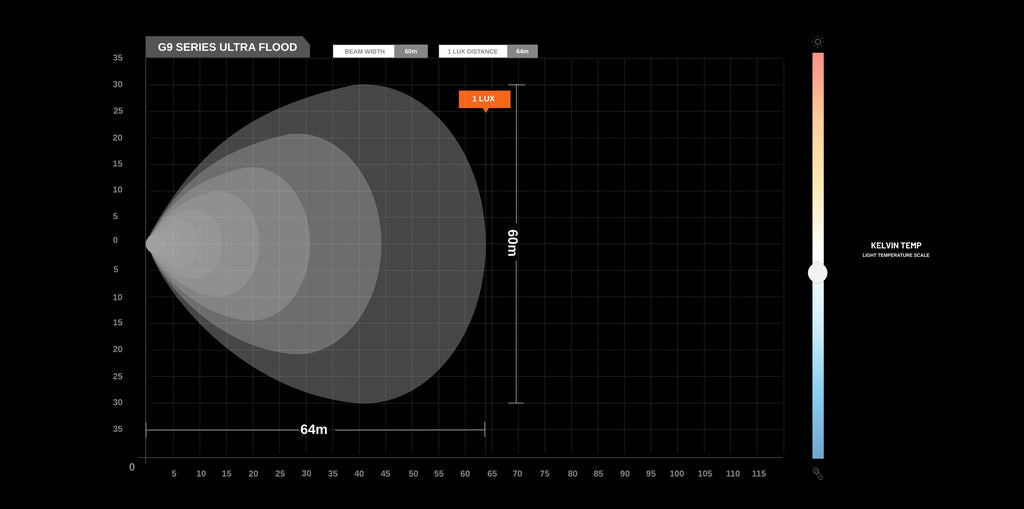

Engineered with advanced CREE XP-L2 LED technology, the G9 — Ultra Flood produces a powerful, smooth light beam that prioritises diffusion, delivering an ultra flood-lit zone 60 metres wide and 64 metres long at 1 LUX — ensuring the critical near field is illuminated with a full, 5700K light.

The Nitty
Gritty
The STEDI™ G9 — Ultra Flood is a multipurpose auxiliary light delivering big, blinding performance that pulls no punches. Suitable for a range of heavy duty applications, the G9 — Ultra Flood delivers our widest, ultra-diffused light pattern of 80 degrees — optimised to distribute light both laterally and vertically to minimise any directional intensity. Built to last, the STEDI™ G Series achieves the highest IP68 & IP69K rating and CISPR 25 C3 certification.Engineered with advanced CREE XP-L2 LED technology, the G9 — Ultra Flood produces a powerful, smooth light beam that prioritises diffusion, delivering an ultra flood-lit zone 60 metres wide and 64 metres long at 1 LUX — ensuring the critical near field is illuminated with a full, 5700K light. The colour temperature has been enhanced to deliver a brilliant white light while reducing glare and eye strain, ensuring you can focus on the task at hand without compromise. Pushed to the limit, the STEDI™ G Series sets a new standard in work and task light durability. Punished through advanced vibration and shock testing, the entire G-Series achieves the highest possible IP68 & IP69K rating — guaranteeing that each light is completely dust-proof and waterproof even in high-pressure and temperature environments. The CISPR 25 C3 certification ensures electromagnetic interference is suppressed, protecting sensitive onboard receivers like AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. When it comes to durability, the G-Series is in a class of its own.
- 9x CREE XP-L2 LEDs
- IP68 & IP69K Rated
- CISPR 25 C3 Certified
- Shock Tested At 30Gs & Vibration Tested At 5Gs Of Force
- 1 LUX @ 64m Length
- 1 LUX @ 60m Width
- STEDI™ Cover Included
- Stainless Steel Hardware & Bracket Included
- Tinned Cabling
- Isolated Earth
- Heavy Duty Marine-Grade AkzoNoble™ Powder Coating
| LED POWER OUTPUT | 9 x 10w LEDs |
| LUMENS RAW | 9000LM |
| LUMENS TESTED | 6900LM |
| OPERATING VOLTAGE | 12v & 24v Compatibility |
| IP RATING | IP68 & IP69K |
| CISPR RATING | R25 C3 |
| LED | CREE XP-L2 |
| 1 LUX (METRES) | 64m |
| COLOUR TEMPERATURE (CCT) | 5700K |
| MATERIAL | Die Cast Aluminium Housing |
| LENS | Polycarbonate |
| BOLTS AND FITTINGS | Included |
| BEAM TYPE | Flood |
| LIFE SPAN | 50,000 Hours |
| AMP DRAW | 7.2A @ 13.5v |
| WEIGHT | 1.91kg |
